Applications
- Pump seal glands
- Packing glands
- Lantern rings / seal cages
- Stuffing-box or packing-area components
- Mechanical seal gland components
- Pump repair and replacement
- OEM and aftermarket spare-part supply
Pump gland components
Custom Seal Glands, Packing Glands and Lantern Rings Made to Drawings or Samples
Drawing-based 304 mechanical seal gland or seal gland
Drawing-based seal glands, packing glands, lantern rings / seal cages and mechanical seal gland components for pump applications. These are machined components, not complete mechanical seal assemblies or compression packing sets.
- Seal / packing area

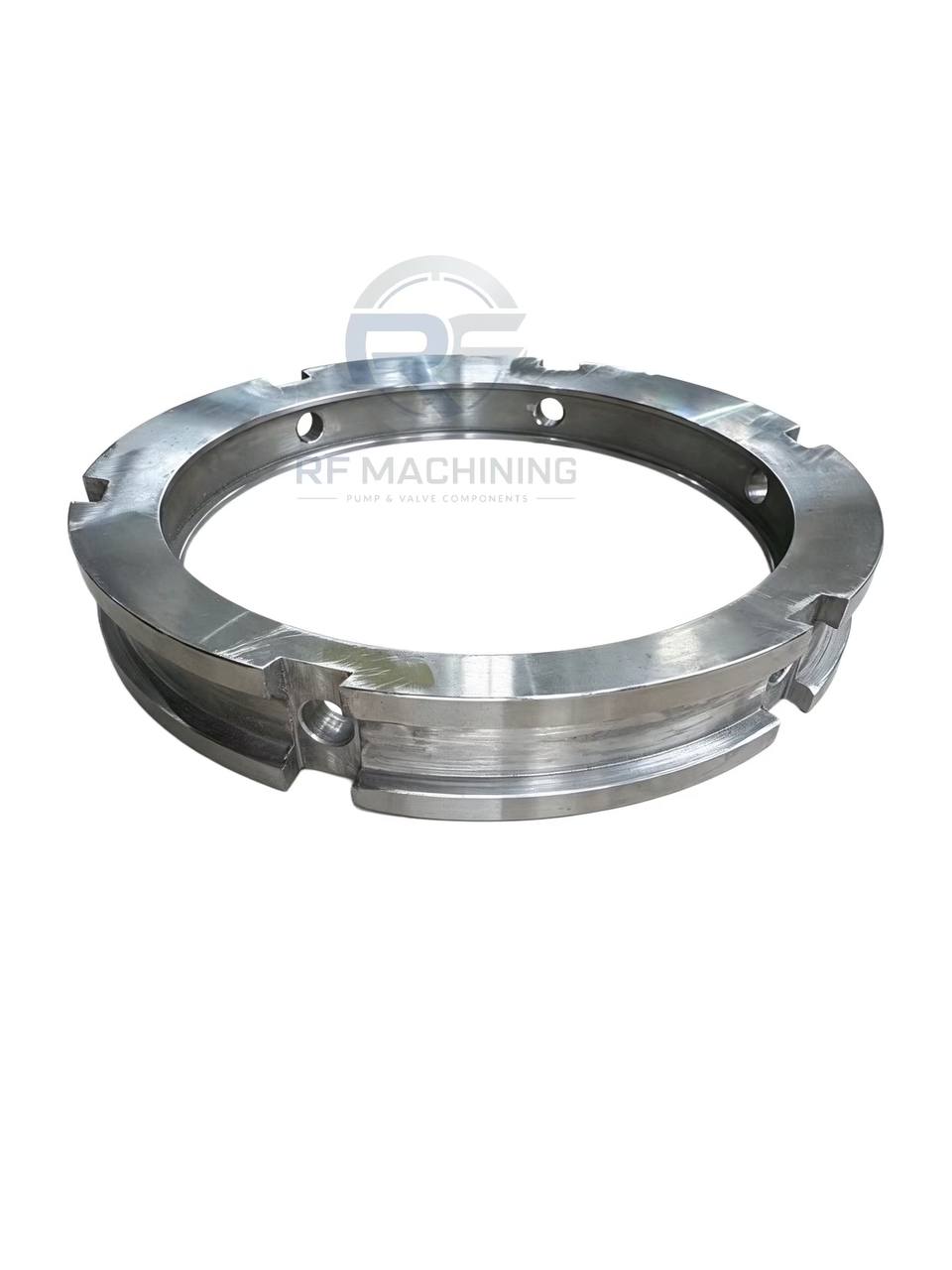

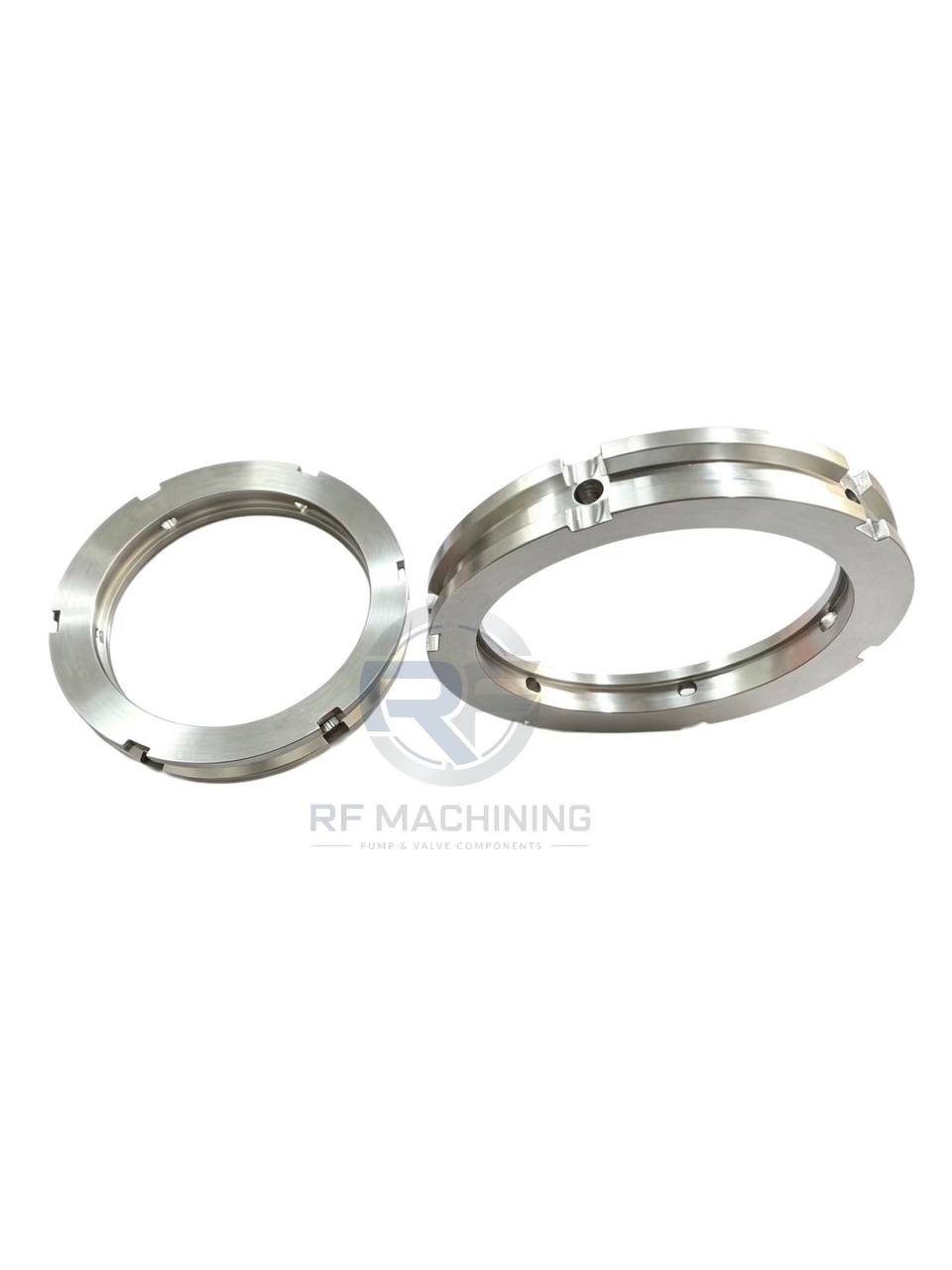

- Lantern rings
- Drawing-based
Application and function
Seal glands and packing glands help locate, retain or compress sealing arrangements according to the customer's pump design. Lantern rings / seal cages are reviewed as drawing-defined stuffing-box or packing-area components used for flushing or lubrication arrangements. RF Machining reviews bolt patterns, faces, fits, threads and material requirements from drawings or samples.
Common names
- Seal gland
- Packing gland
- Mechanical seal gland
- Lantern ring
- Seal cage
- Gland follower when specified by the drawing
- Gland component
Common materials
- 304 / 316L
- Duplex 2205
- Carbon steel
- Alloy steel
- Bronze / brass when specified
- Customer-specified materials
Buyer concerns
- Bolt-hole position
- Sealing-face control
- End-face control
- Bore and register fits
- Thread and tapped-hole control
- Flush or lubrication holes for lantern rings when specified
- Material and surface-treatment compatibility
In-house processes
- CNC turning
- CNC milling
- Drilling and tapping
- Thread machining
- End-face machining
Partner processes
- Grinding
- Heat Treatment
- Nitriding / QPQ
- Hard Chrome Plating
- Polishing
Key inspection items
- Bore
- OD
- Bolt circle and hole positions
- Thread
- End faces
- Register fits
- Lantern-ring hole positions when specified
- Surface roughness
- Hardness when required
Documents available upon request
- Material certificate upon request
- First article report upon request
- Key-dimension inspection record
- Surface-treatment record when applicable
- Packing photos upon request
RFQ details to include
- Drawing or sample photos
- Material grade and quantity
- Bolt pattern, bore, register, thread and lantern-ring hole details when applicable
- Sealing-face or end-face requirements
- Surface treatment and inspection requirements
Buyer FAQs
Does RF Machining manufacture complete mechanical seals?
No. RF Machining supplies machined seal gland, packing gland and related gland components according to customer drawings, not complete mechanical seal assemblies.
Can RF Machining manufacture pump lantern rings or seal cages?
Yes. Lantern rings / seal cages can be quoted when the drawing defines material, bore, OD, hole pattern, width and the stuffing-box or packing-area context. They are supplied as machined components, not as complete packing sets.
Can you machine a mechanical seal gland from a drawing?
Yes. The drawing should show bolt-hole positions, register fits, bore dimensions, sealing faces, threads, material and inspection requirements.
Can surface treatment be arranged for gland components?
Surface treatment can be arranged through partner processes when the drawing or RFQ specifies the requirement.
Related components
Request for quotation
Send drawings or sample information
Send your drawing or sample information together with material, quantity, surface-treatment and inspection requirements. Our team will review the request and reply as soon as possible.
Upload Drawing for QuoteRFQ details to include
- Drawing or sample information
- Material requirements
- Order quantity
- Surface-treatment requirements
- Inspection requirements
- Target delivery timing
